1

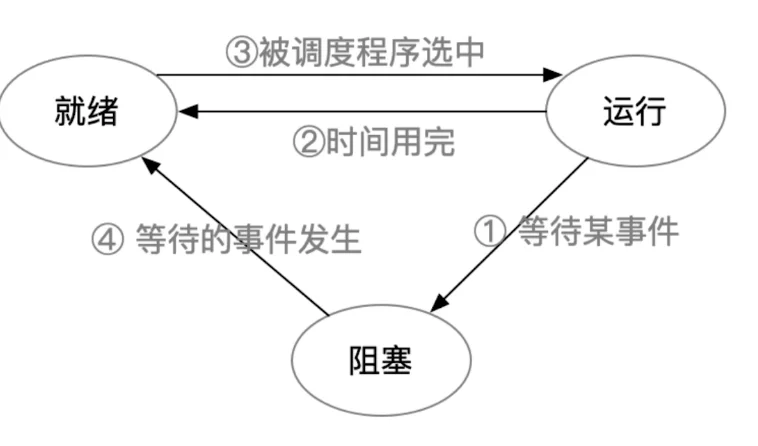

![线程状态](/assets/os-notes/Pasted%20image%2020260605180138.webp)
2

3

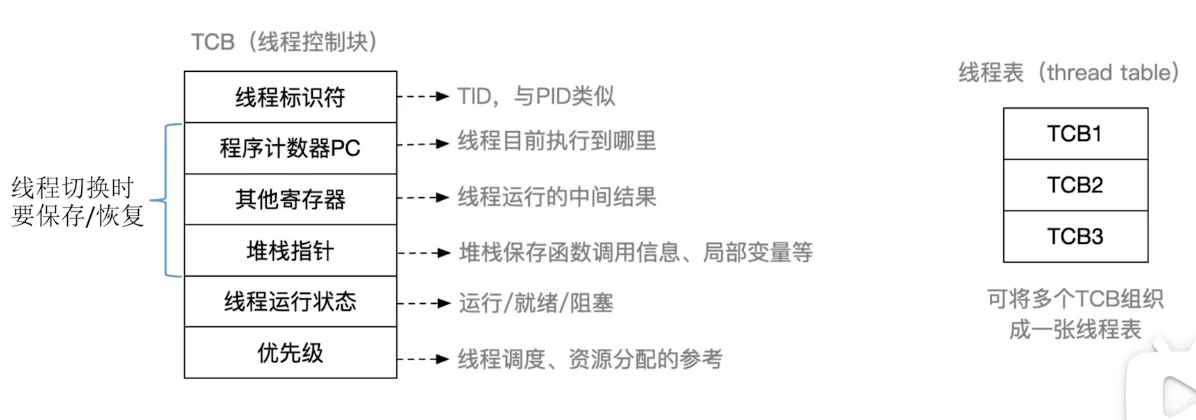

### 4.2 线程控制块（TCB）
4

5
TCB存储线程的信息：
6

7
| 信息 | 说明 |
8
|------|------|
9
| 线程ID | 唯一标识 |
10
| 程序计数器 | 下一条指令地址 |
11
| 寄存器值 | CPU寄存器状态 |
12
| 栈指针 | 线程栈的位置 |
13
| 线程状态 | 就绪/运行/阻塞 |
14

15
![线程组织](/assets/os-notes/Pasted%20image%2020260605180515.webp)
16

17
---
18

19
<a id="linux"></a>
20
## 五、Linux实战：线程管理
21

22
### 5.1 Linux中的线程
23

24
Linux中线程被称为**轻量级进程**（LWP），使用 `clone()` 系统调用创建。
25

26
### 5.2 查看线程
27

28
```bash
29
# 查看进程的线程
30
ps -T -p <PID>
31

32
# 查看所有线程
33
ps -eLf
34

35
# 使用top查看线程
36
top -H -p <PID>
37

38
# 使用htop（更直观）
39
htop -H

1
cat > thread_demo.c << 'EOF'
2
#include <stdio.h>
3
#include <pthread.h>
4

5
void* thread_func(void* arg) {
6
    printf("线程 %ld 运行中\n", (long)arg);
7
    return NULL;
8
}
9

10
int main() {
11
    pthread_t threads[3];
12

13
    // 创建3个线程
14
    for (long i = 0; i < 3; i++) {
15
        pthread_create(&threads[i], NULL, thread_func, (void*)i);
16
    }
17

18
    // 等待线程结束
19
    for (int i = 0; i < 3; i++) {
20
        pthread_join(threads[i], NULL);
21
    }
22

23
    printf("所有线程执行完毕\n");
24
    return 0;
25
}
26
EOF
27

28
gcc thread_demo.c -lpthread -o thread_demo
29
./thread_demo

1
python3 << 'EOF'
2
import threading
3
import time
4

5
def worker(tid):
6
    print(f"线程 {tid} 开始")
7
    time.sleep(1)
8
    print(f"线程 {tid} 结束")
9

10
# 创建5个线程
11
threads = []
12
for i in range(5):
13
    t = threading.Thread(target=worker, args=(i,))
14
    threads.append(t)
15
    t.start()
16

17
# 等待所有线程完成
18
for t in threads:
19
    t.join()
20

21
print("所有线程执行完毕")
22
EOF

1
python3 << 'EOF'
2
import threading
3

4
counter = 0
5
lock = threading.Lock()
6

7
def increment():
8
    global counter
9
    for _ in range(100000):
10
        with lock:
11
            counter += 1
12

13
# 创建10个线程并发修改共享变量
14
threads = []
15
for _ in range(10):
16
    t = threading.Thread(target=increment)
17
    threads.append(t)
18
    t.start()
19

20
for t in threads:
21
    t.join()
22

23
print(f"最终计数: {counter}")  # 应该是1000000
24
EOF

1
python3 << 'EOF'
2
import threading
3
import multiprocessing
4
import time
5

6
def task():
7
    sum(range(1000000))
8

9
# 测试线程
10
start = time.time()
11
threads = [threading.Thread(target=task) for _ in range(4)]
12
for t in threads: t.start()
13
for t in threads: t.join()
14
thread_time = time.time() - start
15

16
# 测试进程
17
start = time.time()
18
processes = [multiprocessing.Process(target=task) for _ in range(4)]
19
for p in processes: p.start()
20
for p in processes: p.join()
21
process_time = time.time() - start
22

23
print(f"线程耗时: {thread_time:.3f}s")
24
print(f"进程耗时: {process_time:.3f}s")
25
EOF

1
# 查看线程栈信息
2
cat /proc/<PID>/task/<TID>/stack
3

4
# 查看线程状态
5
cat /proc/<PID>/task/<TID>/status
6

7
# 使用pstack查看线程栈
8
pstack <PID>
